訂貨號01
品牌盟創
貨號181
型號WF-180/20/30/40/50/60/80
適用物料通用
應用領域食品、化工、制藥
生產能力550(kg/h)
主軸轉速3900(r/min)
進料粒度≤100(mm)
電機功率5.5/7.5(KW)
出料粒度0-120目
外形尺寸800*900*1550(m)
重量550(kg)
粉碎程度細磨機
物料含水量5

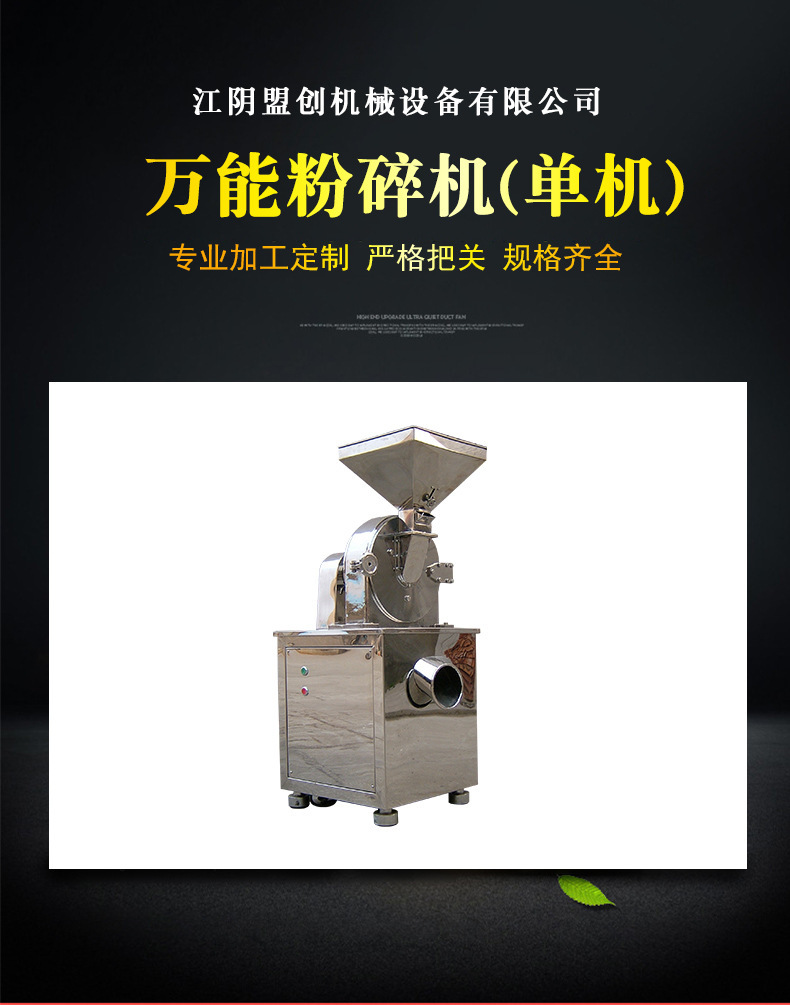

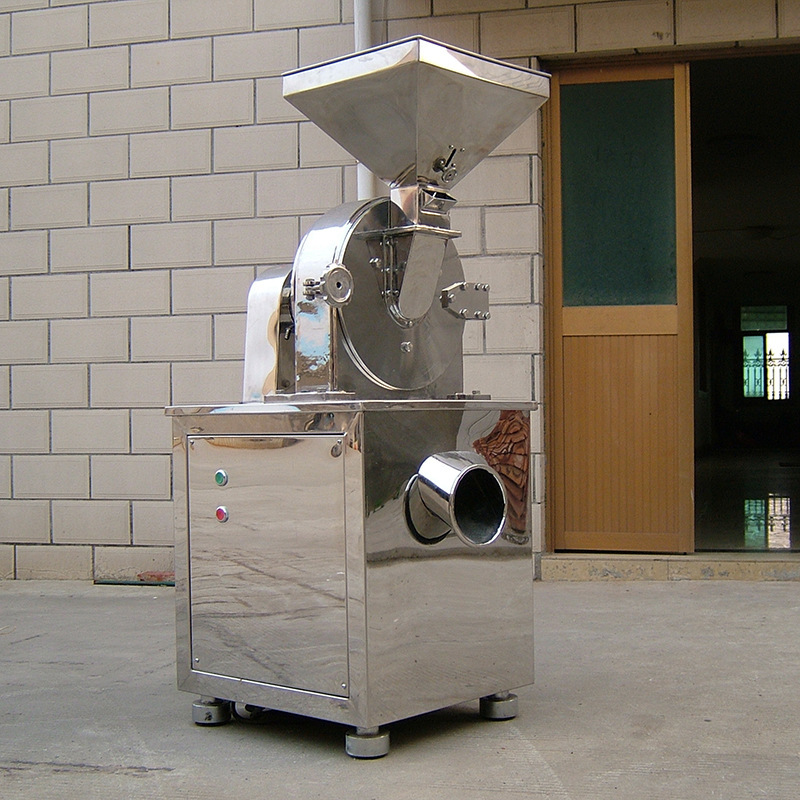

WF系列萬能粉碎機
WF Series Universal Crusher
工作原理 Working Method

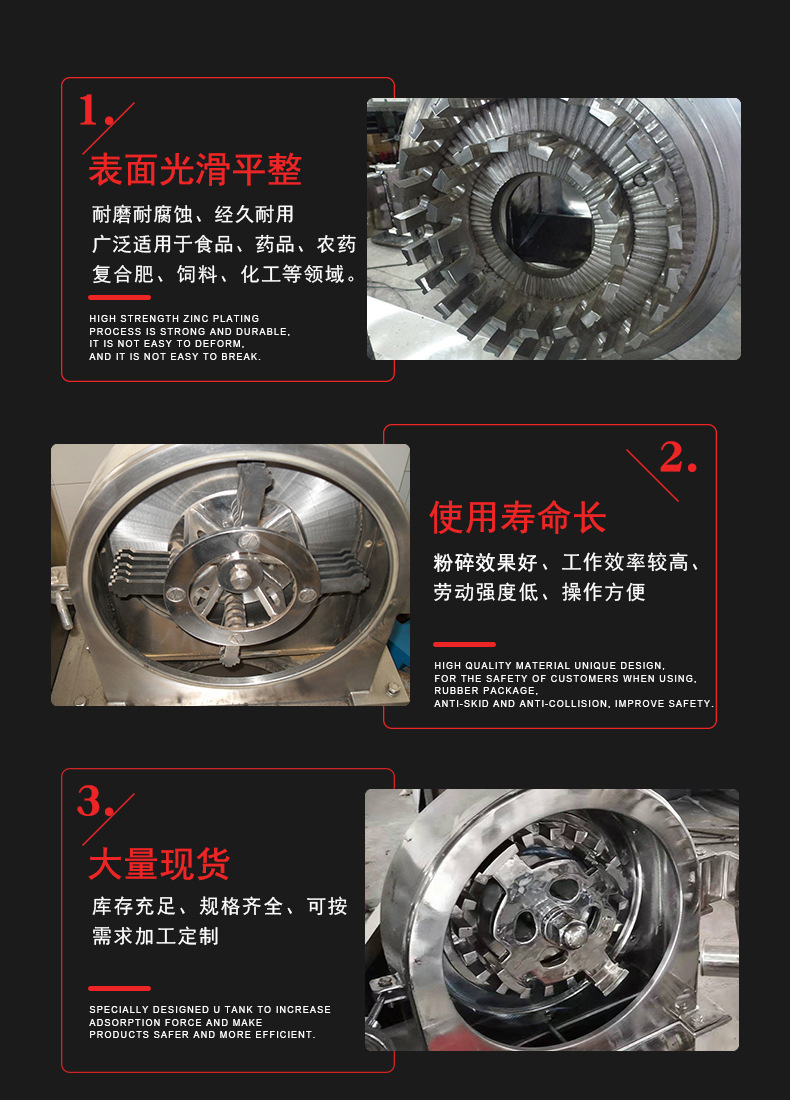

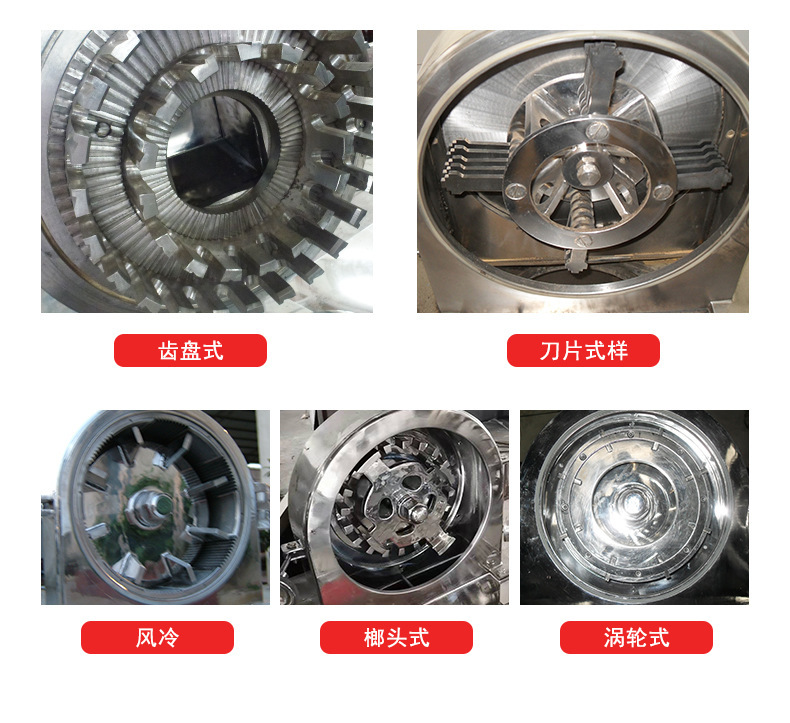

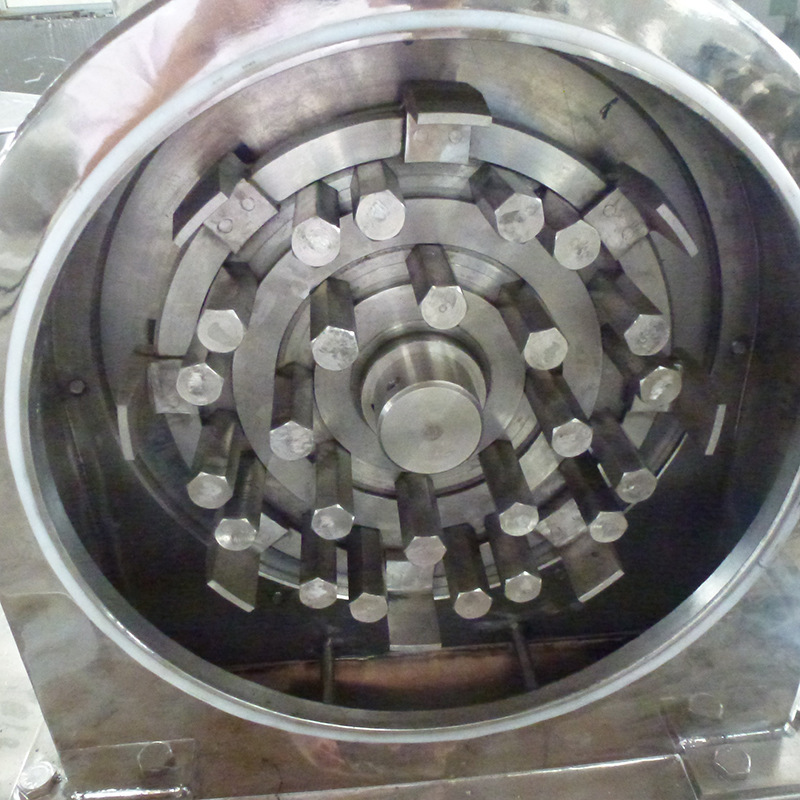

本機利用活動齒盤和固定齒盤間的高速相對運動,使被粉碎物經齒盤沖擊、磨擦及物料彼此間沖擊等綜合作用獲得粉碎。本機結構簡單、堅固、運轉平穩、粉碎效果,被粉碎物可直接由主機磨腔中排出、粒度大小通過更換不同孔徑的篩網獲得,另外該機為不銹鋼制作。機殼內壁全部經機加工達到表面平滑,改變了以前機型內壁粗糙、積粉的現象。
The mechine uses the relative movement between the active fluted disc and the fixed fluted disc to impact,grind and crush the target materials,The size of granules can be achieved by changing of the screen.The mechine has the features of easystructure,solid,stable running and good efficiency.The crushed material is discharged directly from the grinding chamberof the main frame.In additional,the whole machine is made of stainless stell,with smooth inside walls to avoid power accumulation on the inside walls.
技術參數
型號 Model | 18型 | 20型 | 30型 | 40型 | 60型 | 80型 | 100型 |
生產能力(kg/h) Capacity | 10-50 | 60-150 | 100-400 | 160-1000 | 500-1200 | 1000-5000 | 2000-8000 |
主軸轉速(r/min) Speed of principal axis | 6000 | 4500 | 3800 | 3400 | 2800 | 2000 | 1500 |
進料粒度 Size of input granules | <6 | <6 | <6 | <10 | <12 | <12 | <12 |
粉碎細度(目)Fineness of products(Mesh) | 20-120 | 12-120 | 20-120 | 12-120 | 20-120 | 20-120 | 20-120 |
電機功率 Power | 2.2 | 4 | 5.5 | 11 | 18.5 | 37 | 55 |
重量 Weight | 100 | 280 | 350 | 550 | 680 | 1500 | 2500 |
外形尺寸(長×寬×高) Overall Size(L×W×H) | 550×400×850 | 550×600×1250 | 600×700×1450 | 800×900×1880 | 900×900×1880 | 1100×950×1960 | 1350×1000×2100 |
